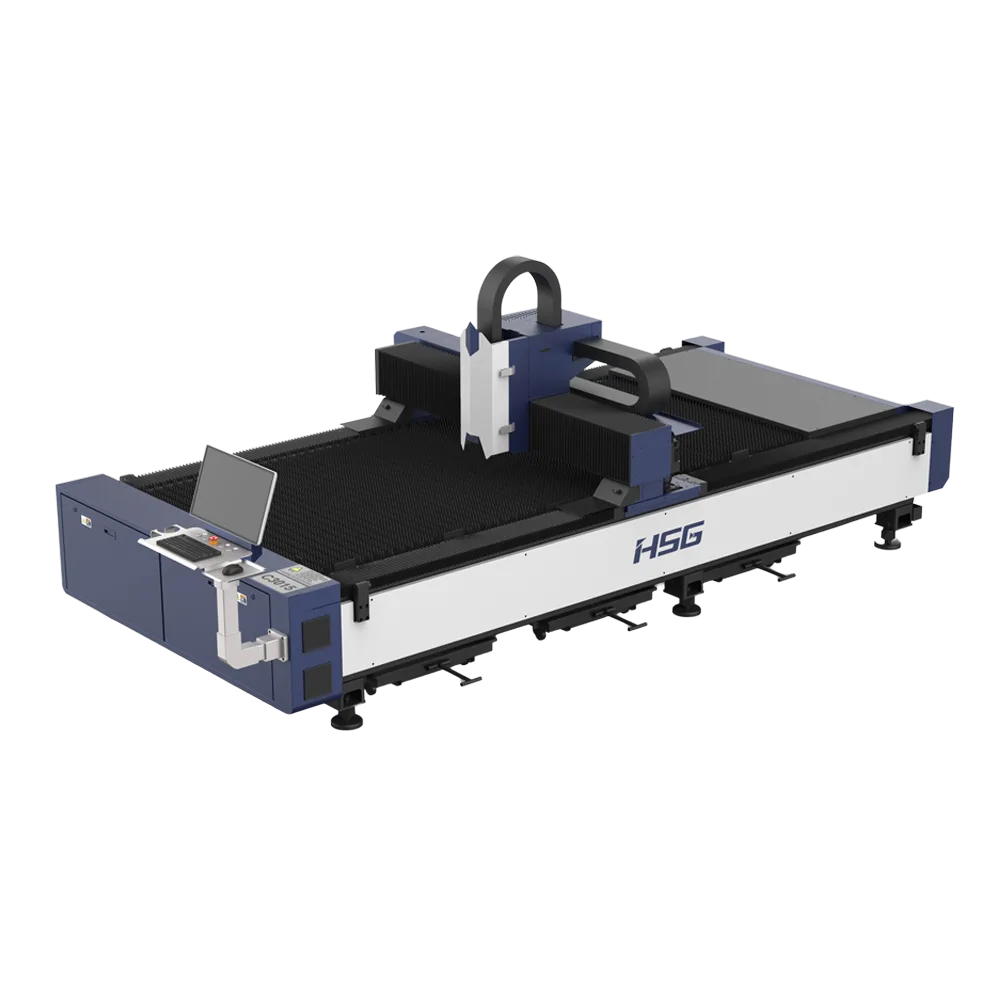

C Series
An economical single-platform fiber laser cutting machine designed for precise sheet metal processing and efficient production.
- 1.5–60 kW Laser power
- 13,100 × 3,100 Max format (mm)
- ± 0.05 mm/m Positioning accuracy
- 7 Models
Product description
The C Series is a single-platform fiber laser cutting machine designed for general sheet metal processing. Its open structure allows loading from the front and both sides, while its compact design supports easier transportation and setup.
The machine combines an EtherCAT-based bus control system, professional nesting software and a production database with multiple cutting technologies for different materials and thicknesses.
Features
EtherCAT Bus Control System
The C Series uses an EtherCAT bus control system for high-speed and stable data transmission. Its interface is designed for straightforward operation while providing multiple cutting functions.
Compact Design for Bulk Transport
The open single-platform structure supports loading from the front, left and right sides. The machine is designed for relatively quick setup, with the manufacturer stating that up to four C3015 machines can be transported in a single 40HQ container.
Extensive Production Database
The production database provides access to cutting parameters for different materials and thicknesses. Available technologies include air cutting, counterboring, Perfect Finish Cut (PFC) and high-speed piercing.
Professional Nesting Software
The nesting software optimizes cutting paths to reduce cutting time and improve material utilization through automated part arrangement.
Models
| Model | Power | Processing Format (L × W) | X/Y-Axis Positioning Accuracy |
|---|---|---|---|
| C3015 | 1.5–6kW | 3048 × 1524 mm | ±0.05 mm/m |
| C4020 | 1.5–6kW | 4064 × 2032 mm | ±0.05 mm/m |
| C6015 | 3–12kW | 6096 × 1524 mm | ±0.05 mm/m |
| C6025 | 3–20kW | 6096 × 2540 mm | ±0.05 mm/m |
| C8025 | 3–20kW | 8050 × 2540 mm | ±0.05 mm/m |
| C12025 | 12–60kW | 12,500 × 2540 mm | ±0.05 mm/m |
| C13030 | 12–60kW | 13,100 × 3100 mm | ±0.05 mm/m |
May we help?
- What materials can the C Series cut?
- The C Series can be configured for cutting different sheet materials and thicknesses, with its production database providing cutting technologies and parameters for different material requirements.
- How does the C Series support material utilization?
- Its professional nesting software automatically arranges parts and optimizes cutting paths, helping reduce material wastage and improve sheet utilization.
- What makes the C Series suitable for bulk installation or transportation?
- The compact, open single-platform design allows front, left and right-side loading. Multiple C3015 machines can also be transported in a single 40HQ container, making the series suitable for bulk orders and installations.
- What production technologies are available in the C Series?
- The production database includes technologies such as air cutting, counterboring, Perfect Finish Cut (PFC) and high-speed piercing, allowing cutting parameters to be selected according to the material and thickness.
