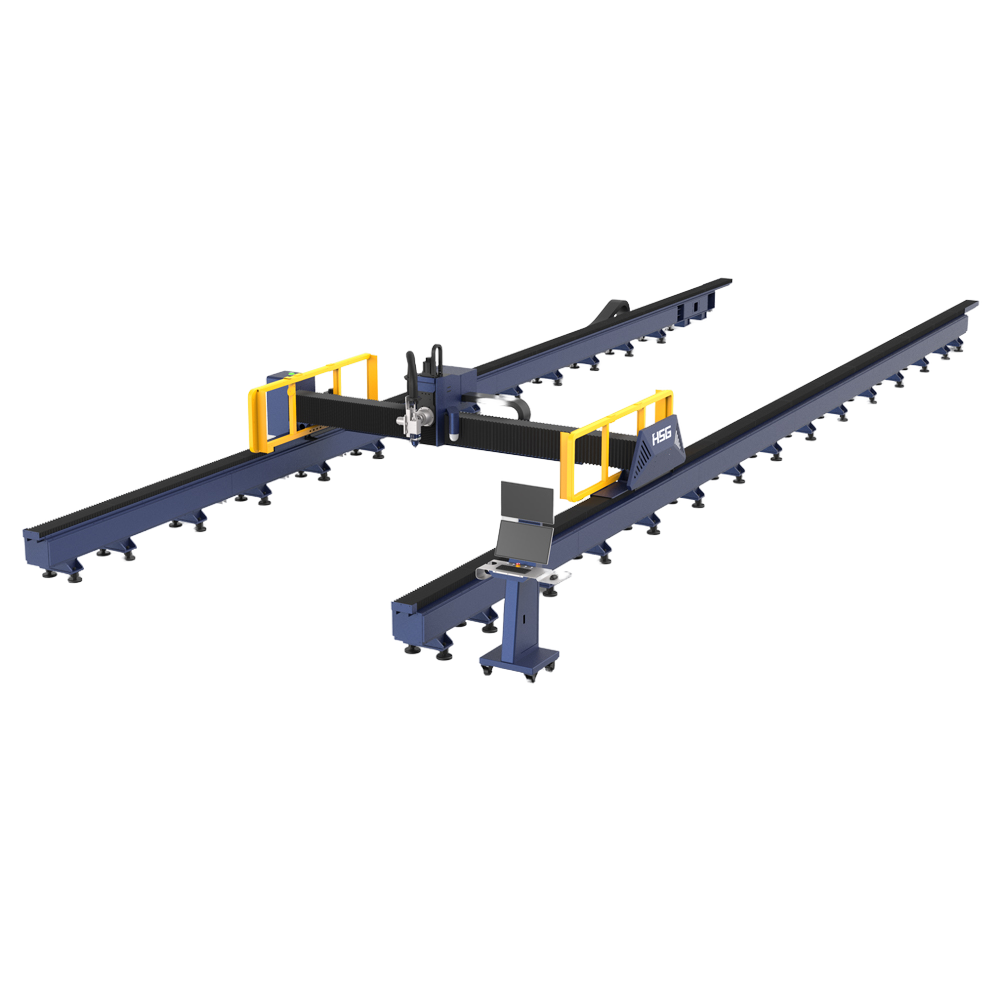

Effective S
Precision Fiber Laser Cutter with Granite and Carbon Construction
- 1 kW Laser output
- 1250 × 1250 Table (mm)
- Granite Axis construction
- 840D SL CNC control
Product description
Effective S is a compact fiber laser cutting machine built for precise sheet metal processing. It combines a granite-based axis structure with carbon moving components, X/Y linear motors and 840D SL CNC control for stable and accurate machine movement.
Features
Granite Axis Construction
The granite longitudinal axes rest on an annealed steel construction, providing vibration damping, low thermal expansion and long-term stability for the moving machine components.
Linear-Motor Drive Technology
Linear motors provide direct movement along the X and Y axes, supporting high dynamics, accurate paths and low mechanical wear.
Lightweight Carbon Construction
The moving Y-axis and attachments use lightweight carbon structures. Their reduced mass supports high dynamic performance and shorter processing times for complex and delicate parts.
840D SL CNC Control
The 840D SL CNC system manages machine movements and cutting operations, working with the linear-motor drive system for precise positioning.
Fiber Laser Technology
The machine uses a fiber laser with approximately 30% electrical-optical efficiency and high beam quality for cutting steel, aluminum, copper and other metal alloys within the specified material thicknesses.
Specifications
| Specification | Details |
|---|---|
| Drives | X/Y-axis linear motors; Z-axis circulating ball screw with servo motor |
| Guides | Backlash-free preloaded circulating ball bearings |
| Footprint | Approx. 29 m² |
| Axis Paths | X: 1260 mm, Y: 1260 mm, Z: 50 mm |
| Beam Source | Fiber laser |
| CNC Control | 840D SL |
| Laser Output | 1 kW |
| Cutting Gases | Nitrogen or oxygen |
| Processing Table | 1250 × 1250 mm |
| Machine Structure | Welded steel construction with granite axes and lightweight carbon moving parts |
| Dimensions W × D × H | 4500 × 6600 × 2358 mm |
| Electrical Power Consumption | 8–12 kW, complete machine in operation |
Material & Thickness Capacity
| Material | Maximum Thickness |
|---|---|
| Mild Steel | 3 mm |
| Stainless Steel | 3 mm |
| Aluminum | 2 mm |
| Brass | 3 mm |
| Copper | 2 mm |
May we help?
- What is the benefit of the granite axis construction?
- Granite provides vibration damping, low thermal expansion and a stable foundation for the machine's moving components.
- What materials can Effective S process?
- Effective S can process mild steel, stainless steel, aluminum, brass and copper within the specified thickness limits.
- What type of drive system does Effective S use?
- The machine uses linear motors for the X and Y axes and a circulating ball screw with servo motor for the Z axis.
